READING YOUR METER:





The dials in white are the only dials that are read and used in the billing system. The rightmost white dial stands for 1 unit. (1 unit = 100 cubic feet = 748 gallons) See doing business to see the per unit charges.





This is a typical service installation with the backflow device shown:

(Picture coming soon)





2" Meter Setter / Re-setter

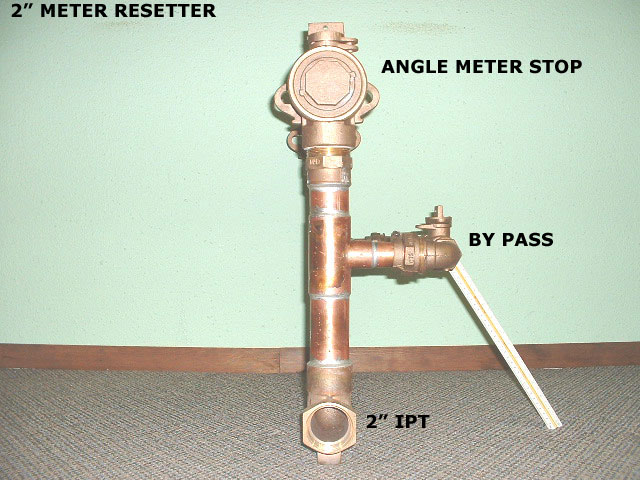

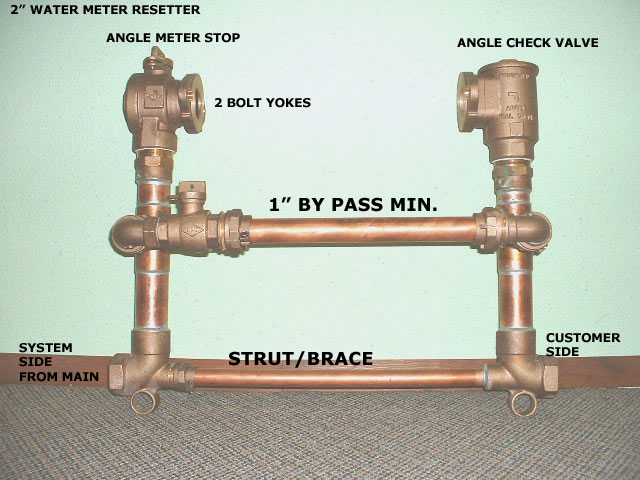

Profile Side View     Profile Front View

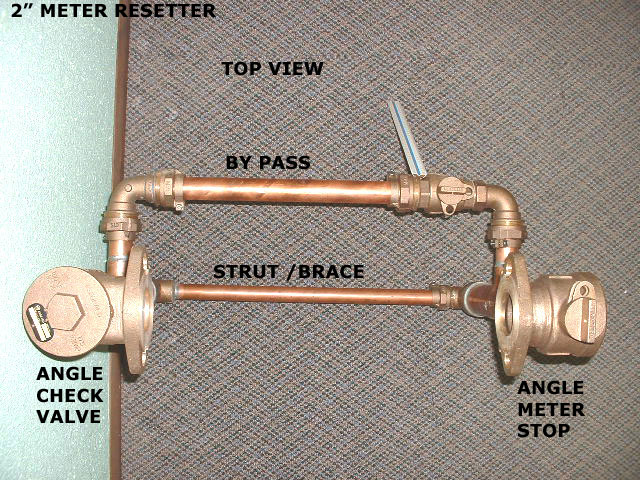

Plan View Top



Commercial Meter & Backflow Prevention

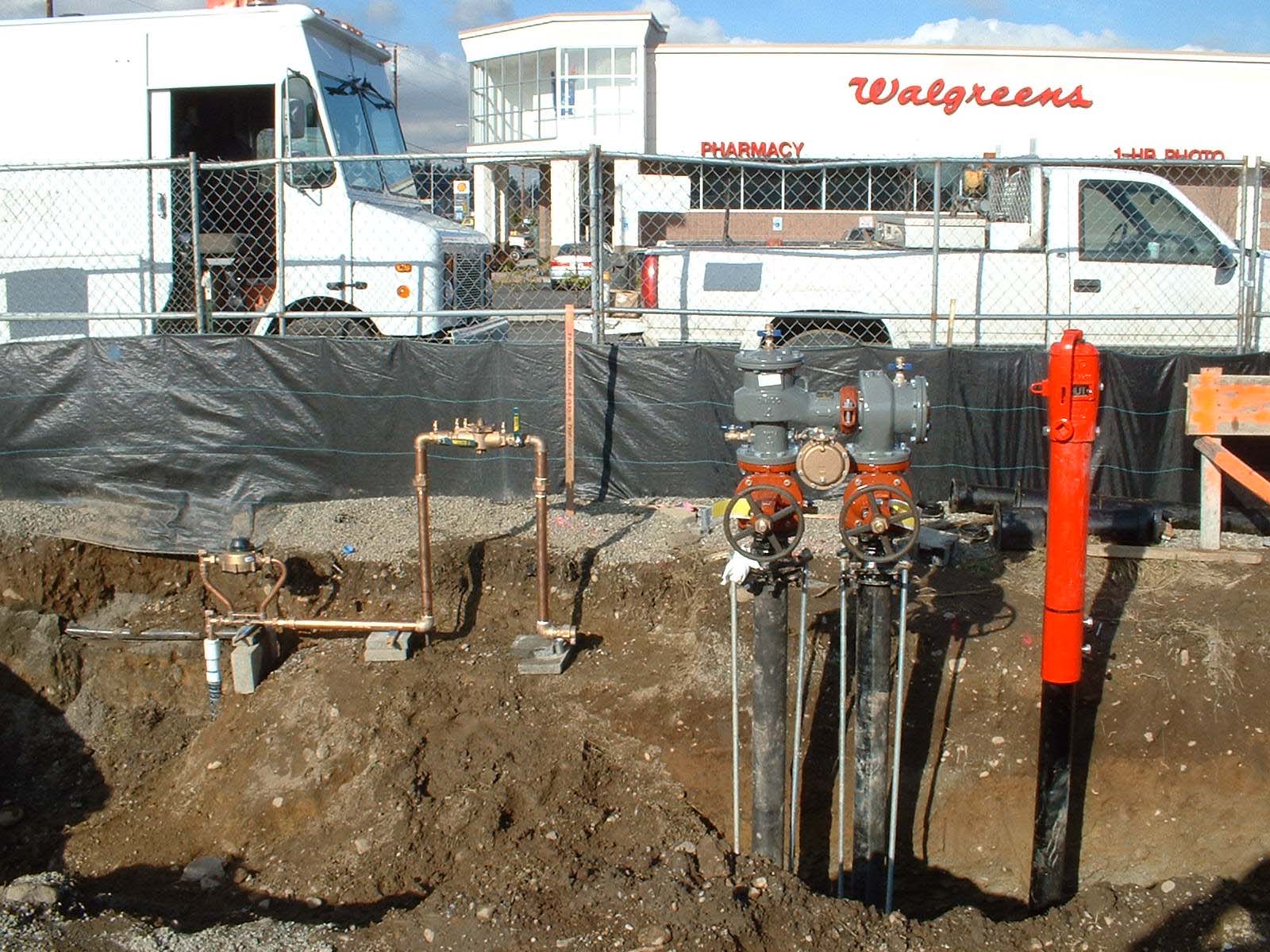

     Potable Meter w/ RPBA (left) & Fire w/ RPDA (right)

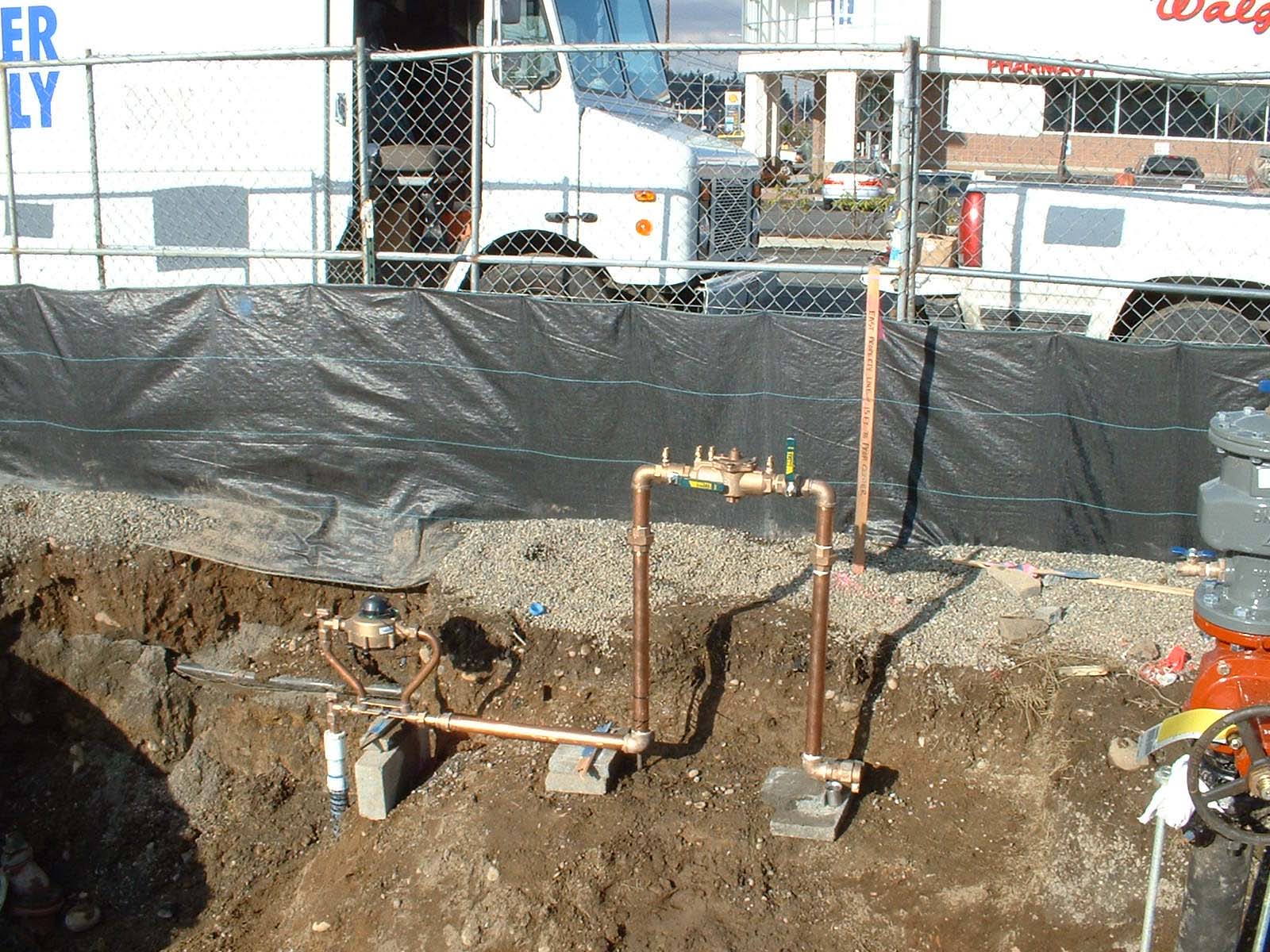

     Potable Meter w/ RPBA Backflow device





     Fire Sprinkler RPDA (Reduced Pressure Detector Check)

     & PIV  (Post Indicator Valve)









Note:

Summit Water Requires an isolation valve located on the water main which feeds the fire protection
assembly. This gate valve is for Summit Water's use only. Any other required valves for the fire appurtenance
is to be downstream of this valve. This valve is NOT the post indicator valve. See construction details.
