Construction Documents PDF Format

The following documents are the property of Summit Water & Supply Company.

These are a guide for project engineers to use in producing drawings for their proposed construction.

Summit Water must approve any and all drawings that are to be submitted to Pierce County for permitting
and construction.

These drawings may be superseded, therefore it is the responsibility of the contractor / engineer to contact
Summit Water for latest information.

The last page of the Construction Specifications is a "Bill of Sale". This document must be filled out, notarized
and returned into Summit Water for transferring ownership of installed infrastructure over to Summit Water.

The warranty of installed infrastructure will start upon receipt of this document and approval of a
completed / passed purity and pressure test.

Files below are available in AutoCAD drawing format for engineers of projects. Contact mailto:lscott@summitwater.org

Engineers must supply an AutoCAD 2017 or older file of the project site with all other utility layers included,
for evaluation and markup. Engineer may also submit a hard copy for markup as well. Engineers may draw preliminary water main & hydrant locations on the drawing for Summit Water to markup. Summit Water will design valves and fittings to be used.

Once the project has been marked up with changes, Engineer will make the necessary changes and submit
hard copies for signing to Summit Water's Manager. A signed copy will remain with Summit Water to use for
inspections during installation.

For projects where infrastructure was installed connecting to Summit Water's infrastructure, project engineer
will be responsible for providing Summit Water with at least 1 hard copy of plans with contractor notes for
water installation and AutoCAD 2017 or older electronic file with other utilities layers included.

This file must be importable for Summit Water to import into its Base Map.

Also a hard copy of the landscaping plan is required since billing for irrigation is based on square
footage of areas to be irrigated.



Summit Water Construction Specifications

This document is for proposed construction. It contains information about materials, detail sheets and requirements contractors are to follow.  (Since this document is periodically reviewed and revised, please contact Summit Water to ensure you have the latest version)



Typical Air Release Used on water main installation where air may get trapped inside.
Typical Blocking Concrete blocking for fittings and deflection of water main.
Typical Blow Off Dead ends of water mains (temporary or permanent)
Typical Fire Hydrant (standard install)
Typical Fire Hydrant (sidewalk install)
Typical Sample Site Attached to fire hydrant.
Typical Tee
Typical Trench Profile view of typical trench detail.
Typical Water Service 5/8" x 3/4" and 1" meter style.
Typical Water Service 2" 2" meter (larger meter similar)
Full Sheet Typical Details "D" size sheet with combined details.
Typical Residential Fire Meter Typical Residential Fire Service w/ Water Meter Setup

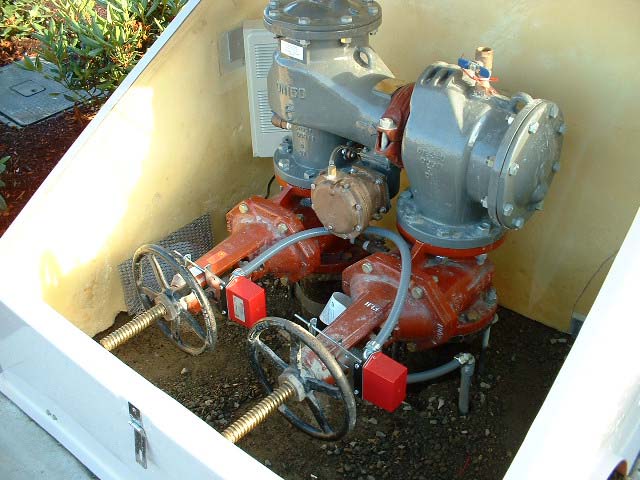

Commercial installation of a Reduced Pressure Backflow Assembly (RPBA) in a "hotbox", with guard posts. Residential Double Check Valve Assemblies (DCVA) are required on all new residential connections, or when the water service line is replaced/modified, the use of water for the property changes (i.e., irrigation systems, hot tub or pool installations) or the ownership of the property changes or is transferred.  Backflow protection is required by the State of Washington Department of Health. Residential backflow devices shall be installed by Summit Water or it's Contractor at the owner's expense.  Upon completion of a satisfactory installation Summit Water will be responsible for the annual testing and normal maintenance and/or replacement.
